Seed drill pneumatic

Made in Germany

Made in Germany

2 Jahre Garantie

years warranty

Weltweites Händlernetzwerk

Worldwide dealer network

Seed drill pneumatic

Viticulture
Fruit growing
Tree nurseries
  • Reliable
  • Space-saving
  • Simple

Mounting options

Clemens Technologies - Weinbau, Obstbau und Getränketechnik

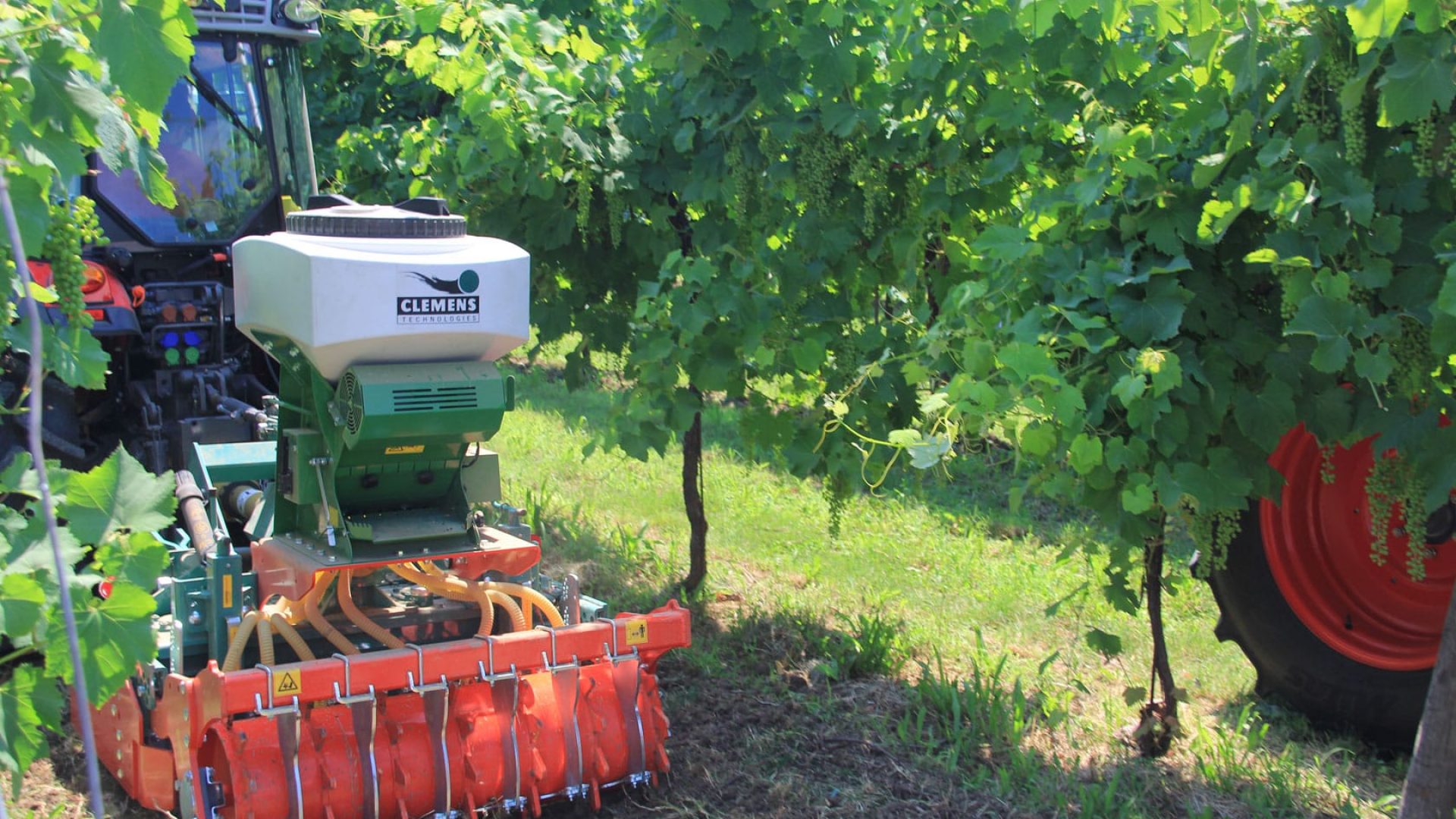

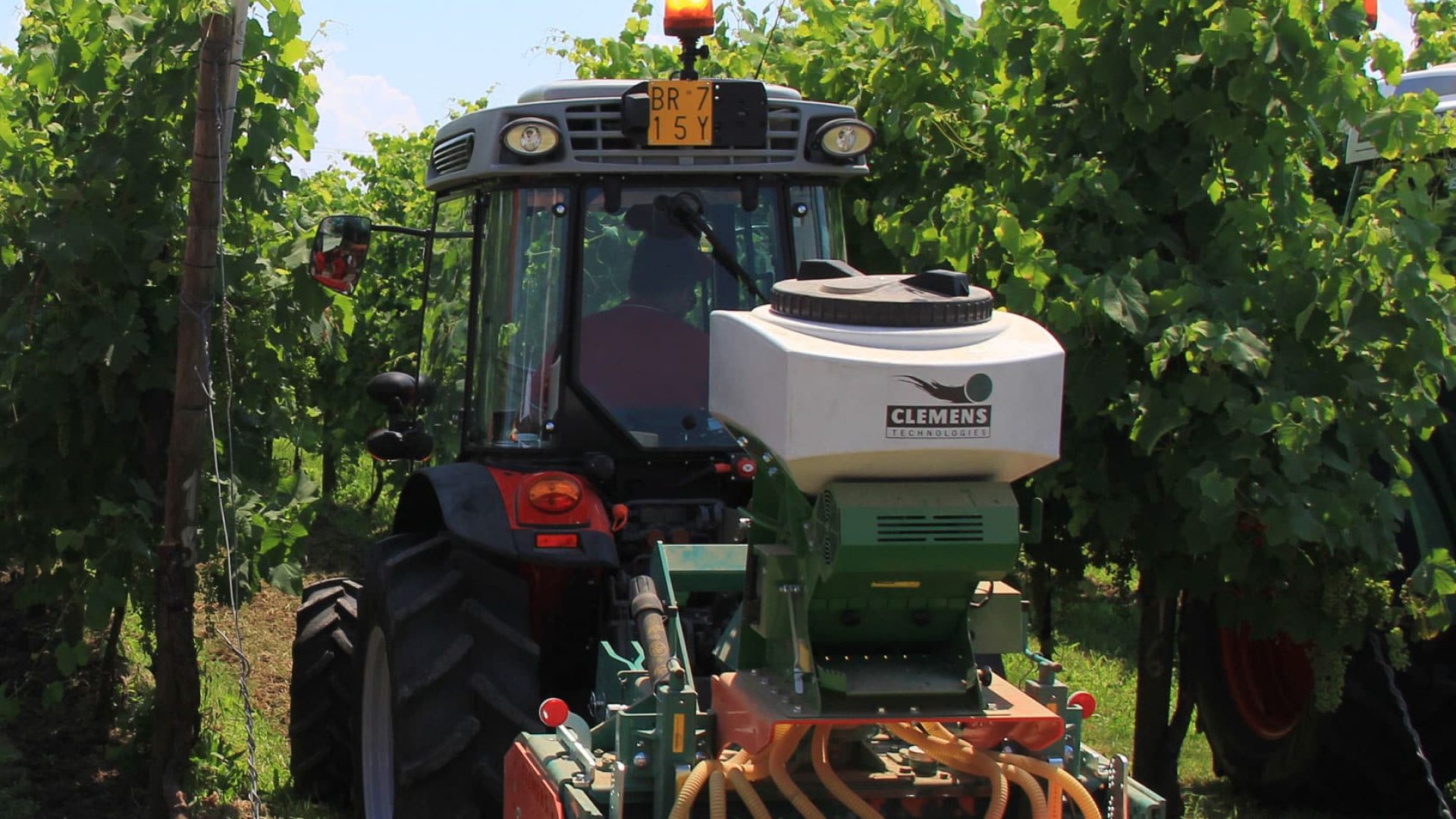

The pneumatic seed drill offers many advantages. The electrically controlled seed shaft transports the seed from the container into the air channel. Here the seed is conveyed with the aid of the blower via flexible hoses to the baffle plates and distributed evenly and close to the ground. This ensures exact seed application even in windy conditions!

Media gallery Photos & videos
About the product More info

Wheel sensor

The wheel sensor is rigidly attached to the frame and detects the driving speed. The control module regulates the rotational speed of the seed shaft and thus the spread rate adapted to the measured forward speed.

7-poliges-Signalkabel

Signal cable 7 poles

If the signal socket on the tractor is correctly wired, the tractor’s forward speed and linkage signal are picked up and displayed on the control module.

Sensor-Hubwerk-Oberlenker

Upper link lift sensor

Optimally suited for 3-point linkage devices. The sowing shaft is automatically engaged or stopped by the mechanical actuation of a sensing spring.

Meadow plane

Repairing damage to grassland, e.g. after the feast of a pack of wild boars, without hard intervention in the soil structure

Planiermeister

Once the wild boars have left, the grassland looks desolate and can no longer be used economically. Now the Planiermeister can do a good job

HEXAGON

The HEXAGON, made of solid hexagonal profiles, is used to hold tools for flat or deep soil loosening and offers the option of connecting

TERACTIV EASY

Similar to the TERACTIV, the TERACTIV EASY optimally intermixes and ventilates the soil with its integrated spring package in each tine unit

VITIS

Mechanical soil cultivation, seedbed preparation and optimum levelling of the ground. Perfect surface for subsequent maintenance work

ASCOT

Mechanical soil cultivation, seedbed preparation and optimum levelling of the ground. Perfect surface for subsequent maintenance work

TERACTIV

With this frame specially developed for difficult soil conditions, the entire row can be worked quickly and optimally in just one pass.

Model:PS120PS200
Filling capacity:about 31.7 galabout 52.8 gal
Number of outlets:8 8
Weight without contents:about 99.2 lbsabout 132.3 lbs
Length x width x height:about 35.4 x 23.6 x 31.5 inabout 39.4 x 27.6 x 35.4 in
