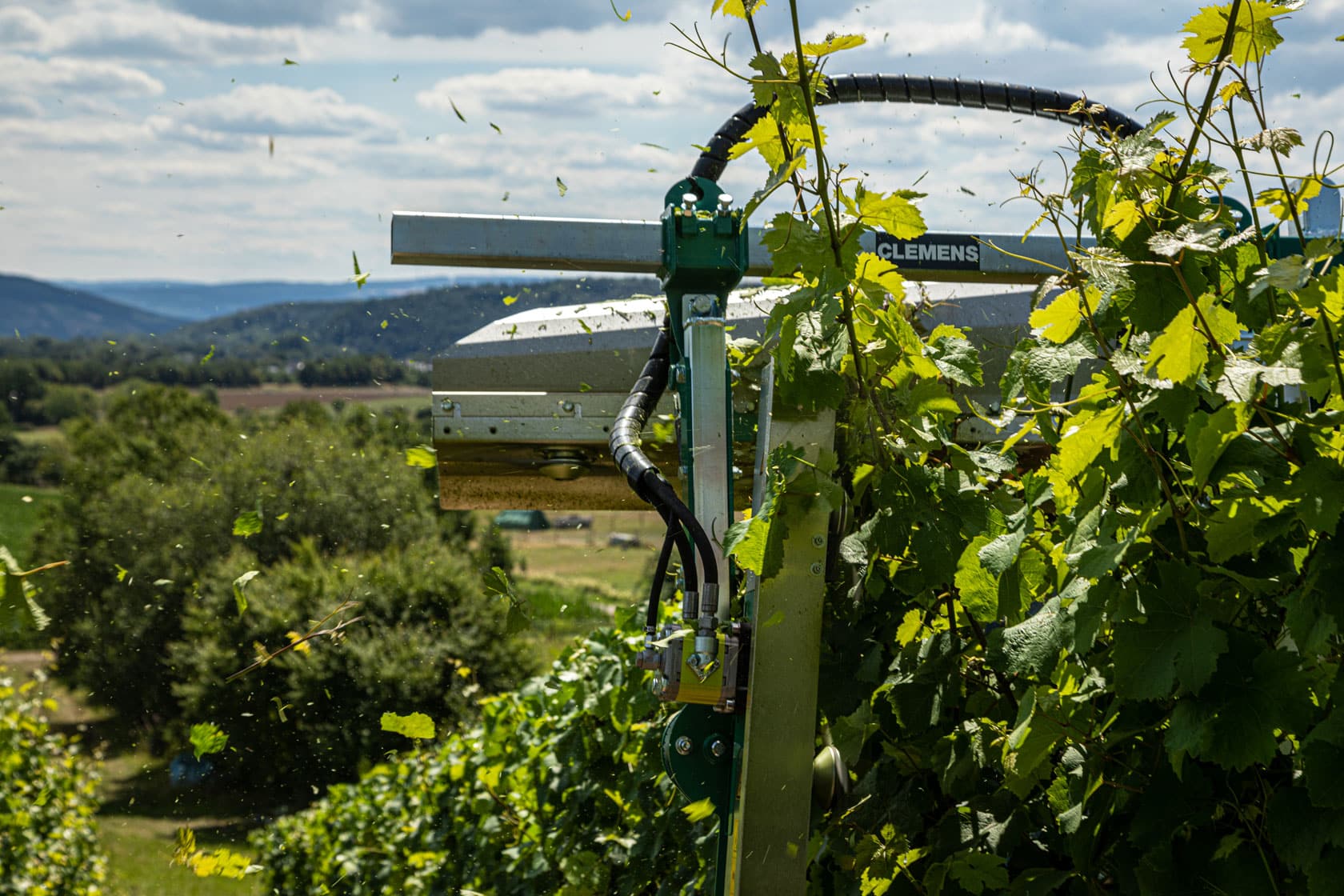

The particularly robust yet lightweight trimmer enables you to work on slopes as well as on large flat surfaces. A fully modular design leaves almost nothing to be desired. The cutter bars can be individually adapted to the respective requirements in their contours such as cutting angle, height and width or cutting pattern. The special sickle knives and splash guards on all knife carriers ensure a particularly clean cut of the vine shoots.
Special features:
Shoot lifter
The shoot lifter grips low-hanging shoots and is infinitely adjustable in height and angle. The drive is powered by the oil circuit of the foliage rotor, which means that no additional control unit is required.
Alternatively, the shoot lifter can also be driven via the tractor hydraulics.
Hydraulic height adjustment
Hydraulic height adjustment of 400 mm
(for 2 and 3 knives horizontal cutter bars)
Mechanical angle adjustment knife carrier
Hydraulic angle adjustment knife carrier
Weight: | Depending on the configuration |
Distributors: | 1x s.a. with pressure-free return for the trimmer |
1x d.a. for the mast 1x d.a. for angle adjustment 1x d.a. for width adjustment |
|
Oil requirement: | Depending on the number of motors installed, from 4.2 up to 9.25 gal/min |
