Made in Germany
COMPACT lifter
Professional service
Worldwide dealer network
COMPACT lifter
- Compact
- Convenient
- Sparing
Mounting options

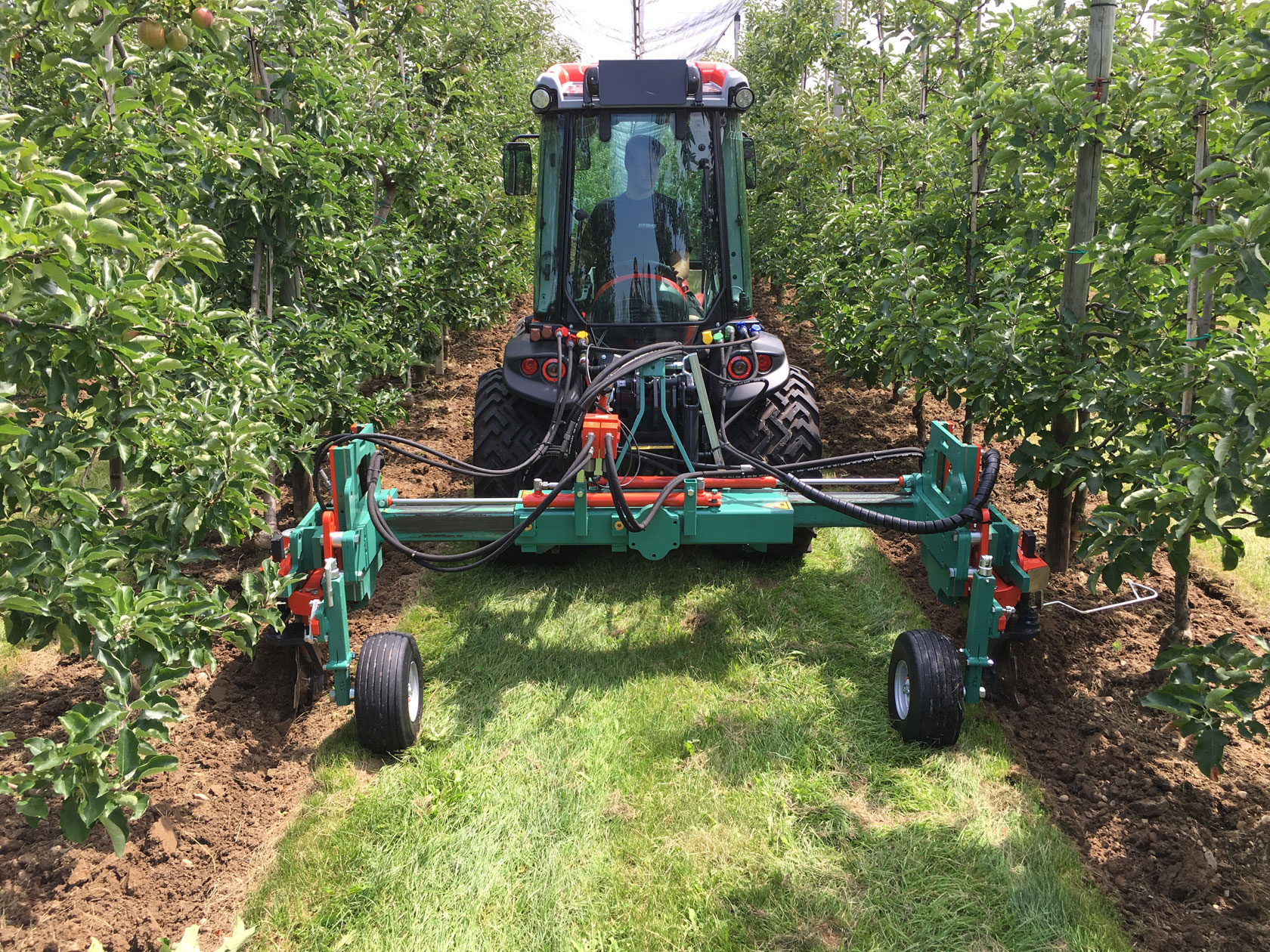

The double-sided operation of machines for undervine care is usually unproblematic. Although sometimes it is not required to work both sides, for example in pointed or end rows. There is also the problem of different elevation levels between the right and left worked row. These situations can easily be solves with the use of column lifters between the working machines and the tool carrier. This way, the currently unused machine can just be unhooked or the elevation difference can be balanced out. For wide row widths, the lifter can be driven in floating position. A support wheel on the lifter allows not only a perfect height guidance near the working tool, but also takes the load off the tool carrier.
Media gallery Photos & videos
About the product More info
Pump-Tank-Unit
Additional hydraulic supply, which is mounted directly on the frame. Hydraulically operated work tools can thus be used without loading the hydraulic system of your tractor.
| Hydraulic requirement: | 1x double-acting with floating position |
| Weight without attachments: | about 161 lbs |
| Length x width x height: | about 23.6 x 8.3 x 23.6 in |
| Stroke (maximum): | 11.8 in |
