Made in Germany
MULTICLEAN
professional service
Worldwide dealer network
MULTICLEAN
- Low-vibration
- Sucker removal
- String device
Mounting options

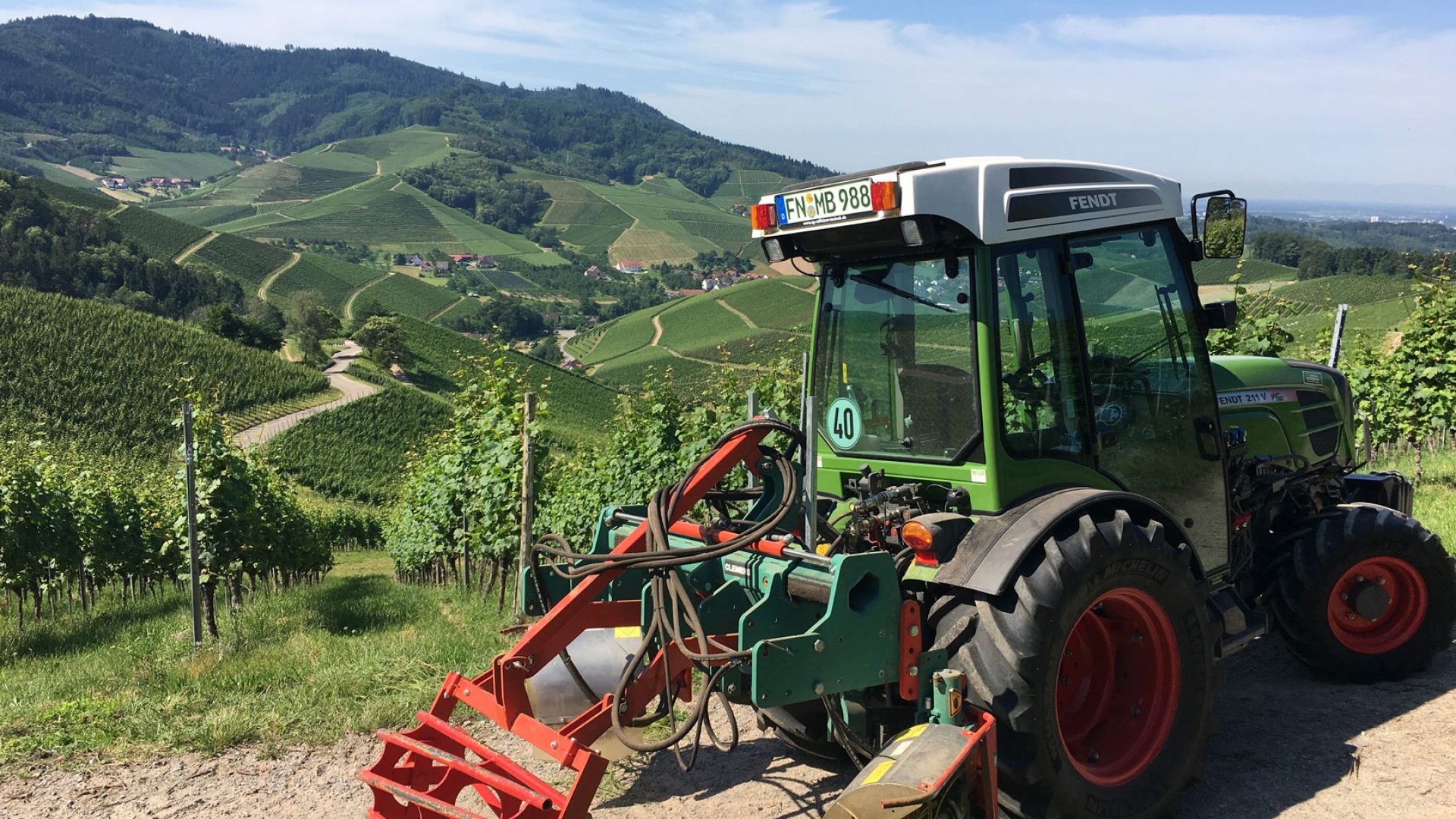

With the MULTICLEAN mulching brush you can remove the shoots and at the same time control weeds in the undervine area without interfering with the soil structure. The MULTICLEAN ist particularly low in vibration and has extremely robust and smooth strings, which are gentle on the vines. Different sizes are available for its various areas of application.
Media gallery Photos & videos
About the product More info
MULTICLEAN
For our standard model, the wire and irrigation hoses have to be installed at least 20 inches above the ground.
MULTICLEAN XS
The particularly compact design guarantees optimal operation of low trellis systems.
The wire and irrigation hoses have to be installed at least 14 inches above the ground.
MULTICLEAN XL
An extended working shaft guarantees an optimal operation in wide plantations. This makes the MULTICLEAN XL particularly suitable for fruit-growing.
Over-the-row frame

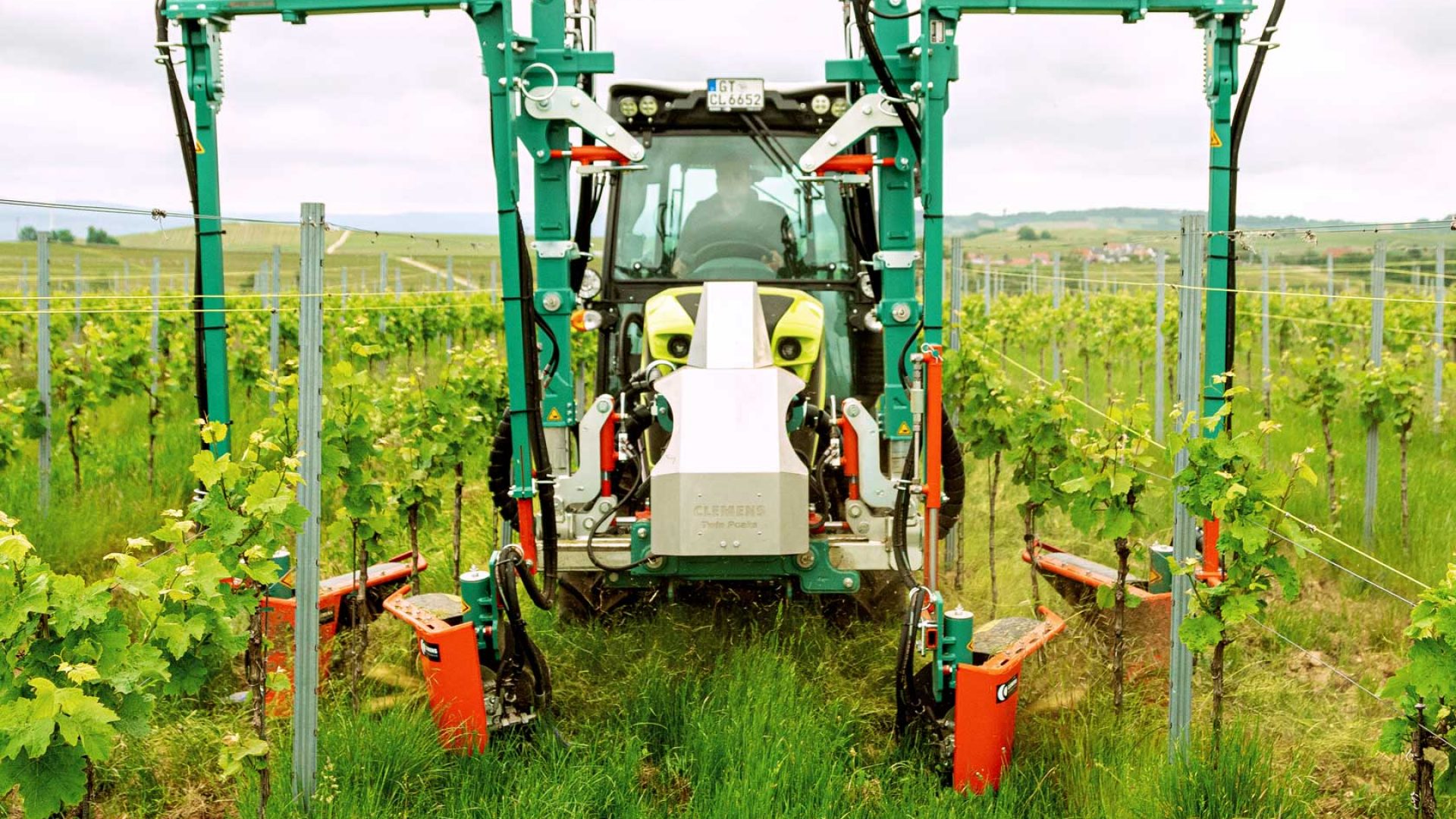

Simple mounting onto the over-the-row frame in front mounting. The distance between the brushes can be adjusted mechanically via a top link or hydraulically. A one-sided hydraulic lift for uneven surfaces is integrated.
Electromagnetic override valve
The electromagnetic manual control allows the MULTICLEAN to be controlled from the tractor cab. A pressure relief valve can be fitted as an option for the single-sided version. The 2-sided version is equipped with flow divider, adjustable pressure relief valve and 2 toggle switches for separate remote control (right or left or right and left) of the two brushes.
ATLAS LITE
The lightweight lift mast, with improved visibility when driving, is ideal for single-sided attachments weighing up to 300 kg.
Hydraulic unit three points
Maximum hydraulic power even with small oil tanks – compact support for your carrier vehicles.
SB Compact
The SB Compact is a robust solution for narrow alleys with many possible combinations. It can be mounted at the rear or at the front
SB 2
Ideal frame to accommodate the modern undervine care systems RADIUS SL, RADIUS SL PLUS or MULTICLEAN
SB MONO
Would you like to work permanently with only a single-sided undervine care device, but as comfortably and safely as possible? For this case
Mid-mounting frame
The execution of multiple operations in one pass saves time and money. Oftentimes though, the length will be unhandy or impractical
Column lifter S5
The 1- or 2-sided installation of the column lifter in the area between the axles allows you to simultaneously work on the undervine area
Lifter S2 with 3 point linkage
Front three-point lift – the compact solution for holding various equipment such as the CLEMENS BIO Mulch Roller ECO-ROLL
COMPACT lifter
The double-sided operation of machines for undervine care is usually unproblematic. Although sometimes it is not required to work both sides
ATLAS lift mast
The ATLAS lift mast is characterised by the hexagonal profile proven in the HEXAGON. Due to its design and the resulting load capacity
HEXAGON
The HEXAGON, made of solid hexagonal profiles, is used to hold tools for flat or deep soil loosening and offers the option of connecting
CLEMENS Mulcher
The variable mulcher for wine and fruit growing works excellently in vegetation management and is also suitable for shredding vine cuttings
SB Orchard
We have developed the SB Orchard for extra wide rows, such as are common in fruit growing. Depending on the equipment
| Model Standard: | Model XS | Model XL | |
|---|---|---|---|
| Hydraulic requirement: | 1x single-acting | 1x single-acting | 1x single-acting |
| Oil requirement (for two-sided operation series connection): | 4.2 – 6.3 gal/min | 4.2 – 10.2 gal/min | 7.9 – 9.2 gal/min |
| Weight: | about 88 lbs | about 82 lbs | about 198 lbs |
| Clearing height: | about 22.8 in (at 37,5° inclined position) | about 15.7 in (at 37,5° inclined position) | about 18.1 in (inclination not adjustable) |
