RADIUS SL PLUS

Made in Germany

Made in Germany

Product warranty

years warranty

Worldwide dealer network

Worldwide dealer network

RADIUS SL PLUS

Viticulture
Fruit growing
Tree nurseries
  • Ecofriendly
  • Robust
  • Versatile

Mounting options

Mounting option
Mounting option
Mounting option
Mounting option

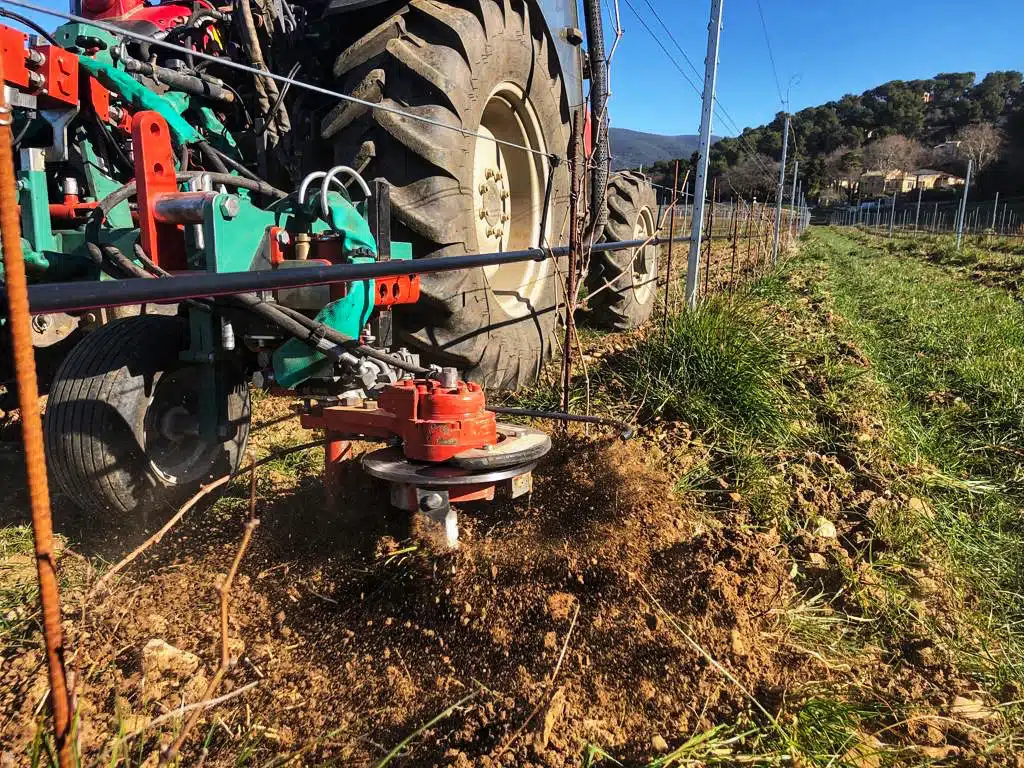

The RADIUS SL PLUS offers all the advantages of the RADIUS SL and even more. In addition to the blade share, driven additional implements can also be mounted quickly. So you always have the right machine at hand, even under different conditions and objectives.

Media gallery Photos & videos
About the product More info
Rotary cultivator

Rotary cultivator

In combination with the blade share, the soil is first broken up and then divided by the rotary cultivator and, depending on the speed of rotation, also cleared a little. The rotary cultivator can also work on its own when conditions are not too extreme, e.g. in very loamy, loosened soils.

Driven discs

Driven discs

The driven discs are used to pull soil out of the vine area, for clearing or to cut furrows, for example to better deposit liquid manure or natural fertilizer.

Mower

Mower

The mower (Ø 400 mm (16”)) swivels hydraulically between the vines to mulch the vegetation that is growing there with two knife blades.

Electromagnetic override valve

Electromagnetic override valve

The electromagnetic manual control allows the blade share to be controlled from the tractor cab. A pressure relief valve can be fitted as an option for the single-sided version. The 2-sided version is equipped with a flow divider, adjustable pressure relief valve and 2 toggle switches for separate remote control (right or left or right and left) of the two blade shares.

Soil and stone deflector

Soil and stone deflector

As an option, soil and stone deflectors can be fitted behind the RADIUS, which pushes the stones and soil out of the alley back towards the vine area after weeding. This keeps the vegetation free for follow-up work such as mulching.

Lateral angle adjustment

Lateral angle adjustment

To compensate for side slopes, we offer hydraulic, mechanical or sensory solutions that bring the weeding device back into the correct position. The lateral angle adjustment can be attached to the base frames such as HEXAGON, SB frames or also to the S2R and S5 column lifters.

Pivoting clod breaker

Pivoting clod breaker

Pivoting clod breakers are mounted on the blade share of the RADIUS and are used to break up the clods of earth and pull roots up over the ground. This helps to dry out weeds more quickly.

Clearing share

Clearing share

The clearing share can be retrofitted to all blade shares with the aid of two screws. If you then change the limit stop and thus the working angle of the blade share to 60°, the soil can be pulled out from between the vines.

Sensing share

Sensing share

The sensing share is pushed outwards by the soil flow and remains in working position a little longer after the blade share has swung in, until the foot of the vine pushes the small share to the side. Weeds growing directly on the vine can be removed this way.

Rigid tine with grubber share

Rigid tine with grubber share

Protects the working shaft, breaks up the ground and, thanks to its shape, supports penetration into the ground even under hard conditions.

Disc plow

Disc plow Ø 300 (12“) & 350 mm (14“)

Protects the working shaft, facilitates the penetration of the blade share into the soil and ensures a clean edge between the vegetation in the row and the worked area under the vines. Slight earth transport towards the vine or from the vine into the alley is possible due to the adjustable angle. The Ø 300 mm (12″) disk plow is available with either an indented or a plain disk.

Clearing body

Clearing body

Protects the working shaft and is particularly suitable for plowing back or hilling up.

Disc colter

Disc colter

Protects the working shaft, facilitates the penetration of the blade share into the soil and ensures a clean edge between the vegetation in the alley and the worked area under the vines.

Pump-tank-unit

Pump-Tank-Unit

Additional hydraulic supply, which is mounted directly on the frame. Hydraulically operated work tools can thus be used without loading the hydraulic system of your tractor.

SB Compact

The SB Compact is a robust solution for narrow alleys with many possible combinations. It can be mounted at the rear or at the front

SB 2

Ideal frame to accommodate the modern undervine care systems RADIUS SL, RADIUS SL PLUS or MULTICLEAN

SB MONO

Would you like to work permanently with only a single-sided undervine care device, but as comfortably and safely as possible? For this case

Mid-mounting frame

The execution of multiple operations in one pass saves time and money. Oftentimes though, the length will be unhandy or impractical

Column lifter S5

The 1- or 2-sided installation of the column lifter in the area between the axles allows you to simultaneously work on the undervine area

COMPACT lifter

The double-sided operation of machines for undervine care is usually unproblematic. Although sometimes it is not required to work both sides

C.DRIVE

Intelligent control system with touchscreen and multifunction joystick

HEXAGON

The HEXAGON, made of solid hexagonal profiles, is used to hold tools for flat or deep soil loosening and offers the option of connecting

TERACTIV

With this frame specially developed for difficult soil conditions, the entire row can be worked quickly and optimally in just one pass.

Finger hoe

The finger hoe gently removes soil and weeds directly around the vine and is ideal for young plants or plantations with very crooked vines

SB Orchard

We have developed the SB Orchard for extra wide rows, such as are common in fruit growing. Depending on the equipment

 Oil requirement:Weight:
Basic device: about 8 – 12 l/min per unitabout 35 kg
Rotary cultivator: about 35 l/minabout 23 kg
Blade share+sensor rod:-about 2,8 – 5,1 kg depending on length
Driven disks:about 20 l/minca. 42 kg
Mower:about 20 l/min-

Blade share/sensor rod lengths: about 500/620 mm
Working speed: about 3 to 10 km/h, depending on tool
